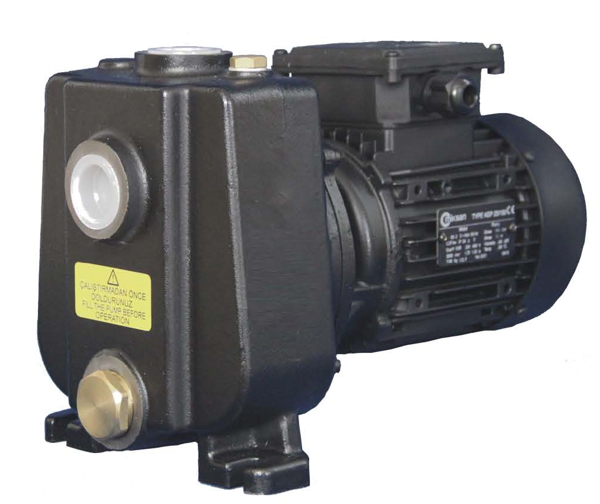

KEP 125 machine coolant pump
max. 120-150L/min.
max. 11-12m
Applications
Cutting, turning, milling, drilling, grinding and similar applications of machine tools,
filter systems,
Circulation systems.
KEP pumps are used for pumping cutting/cooling fluids.
Fluid specifications
coolant
Cutting oils,
grinding oils,
Water
Chips with liquids (max. 6 mm)
Fluid temperature 0...60 oC
Kinematic viscosity 1...30 mm2/s
Materials
Pump body: cast iron - DIN GG25
Motor flange: cast iron - DIN GG25
Impeller: cast iron - DIN GG25
Shaft: stainless steel - AISI 420 (DIN 1.4021)
O-ring: Viton
Mechanical seal: C-SiC-Viton
Electric motor: 3-phase induction motor
1-phase induction motor (optional)
2-pole, 3000 rpm
Protection class IP 54
